50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB

Brand Name : ELT

Model Number : SSMP-JYD4

Certification : ISO9001, IS014001

Place of Origin : Xi'an, China

MOQ : MOQ 100 pieces

Price : The price depend on the quantity

Payment Terms : T/T,L/C,D/P

Supply Ability : As requirements

Delivery Time : 8-12 weeks for new production

Packaging Details : 100pcs/bag or plastic bottle;100pcs/carton as requirement

Product Name : SMPM Male PCB Connectors

Model : SSMP-JHD80

Frequency Range : 0.3MHz-40GHz

Impedance : 50Ω

Rated Voltage : 170v

DWV : 500V

Insulation Resistance : ≥5000MΩ

Center Conductor : Kaval Alloy, Gold Plated

Outer Conductor : Kaval Alloy, Gold Plated

Samples : Available，In Stock

Contact Now

50Ω SMPM Male Full Detent 4 Leg RF Coaxial Connector 0.3MHz-40GHz 170V for PCB Soldering

The SMPM coaxial connector stands out for its compact design tailored to meet small package requirements, making it an ideal choice for high data rate applications. Its exceptional shielding capabilities significantly reduce signal interference, guaranteeing optimal signal transmission even at high speeds.


When combined with an SMPM female-to-female adapter, the connector system excels in creating reliable board-to-board connections. This combination effectively compensates for both radial and axial misalignments during installation, ensuring a robust and stable interconnect solution. This unique feature set makes the SMPM coaxial connector a superior choice for applications demanding high performance and precision in compact spaces.

Product Specifications
Item Value
Product Name SMPM Male PCB Connector
Model SSMP-JHD80
Frequency Range 0.3MHz-40GHz
Impedance 50Ω
Rated Voltage 170V
DWV 500V
Insulation Resistance ≥5000MΩ
Center Conductor Copper Alloy, Gold Plated
Outer Conductor Copper Alloy, Gold Plated
Insulation Dielectric Glass

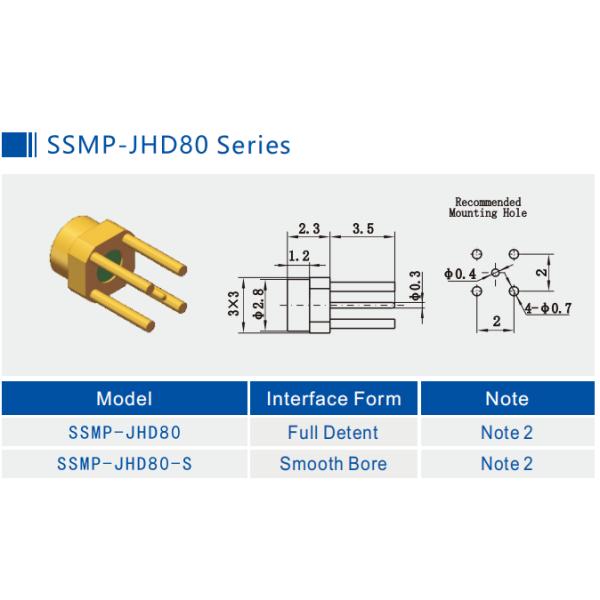

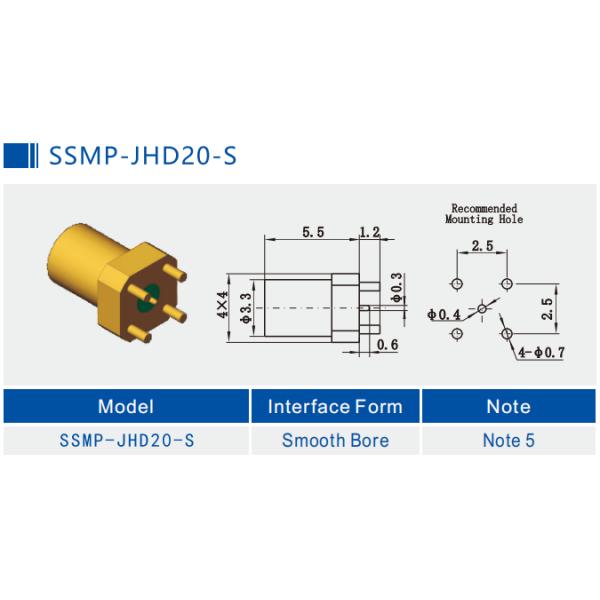

Product Outline Dimensions (Unit: mm)
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB
Note 1:Hermetic Note 2:Engagement Depth 1.4 Note 3: Engagement Depth 1.7 Note 4:Engagement Depth 1.95 Note 5: Engagement Depth 2.11
Applications
  • Microwave communication systems
  • Measurement equipment
  • Aerospace applications
  • Radar systems
  • Electronics fields
Elite Electronic manufactures SMPM connectors using premium materials and rigorous quality control processes to ensure exceptional durability and reliability in extreme environments.
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB










Packaging & Shipping
Each SMPM connector is carefully packaged in protective cartons to ensure safe transit. We use reliable courier services with tracking numbers provided for all shipments.
50Ω SMPM Male RF Connector 0.3MHz-40GHz 170V for PCB












For model availability and additional series options, please contact us at sales3@xa-elite.com.cn.
Note: While some models are in stock, all catalog-listed models can be produced quickly upon request.
