2 Holes Flange Mount SMA Right Angle 90-degree Female Coaxial Connectors
SMA series is a miniature RF coaxial connector developed and produced according to Mil-C-39012. It has the characteristics of small volume, good bandwidth and excellent electrical performance. SMA is the most widely used RF coaxial connector in microwave communication and microwave measurement equipment. The high performance connector developed by our company can reach 20GHz.
Specification:
| Electronic and Material Characterials |
| Impedance | 50Ω |
| Frequency Range | DC~18GHz |
| Rated Voltage | 335 VRMS (Maximum sea-level) |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) |
| VSWR | ≤1.3 |
| Insulation Resistance | ≥5000MΩ |
| Center conductor | Male | Brass gold plated |
| Female | Beryllium copper gold plated |
| Shell and other metal parts | Brass gold plated |
| Stainless steel passivated |
| Cable sheath | Brass nickle plated |
| Insulator | PTFE |
| Seal ring | Silicon rubber |
| Mating torque | 0.79 -1.13 N.m |
Product Cataloge:
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |

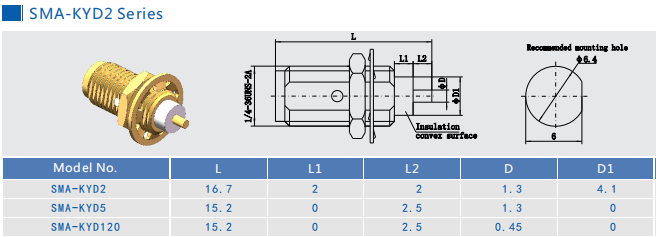

Outline Drawing:(mm)
Application:
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
*Board-to-board interconnect
Similar Products:
1.Male Flange Mount SMA connectors
| Model No. | L | L1 | L2 | D | D1 | D2 |
| SMA-JFD152 | 19.9max | 4 | 1.5 | 0.8 | 4.1 | 2.2 |
| SMA-JFD154 | 18.9max | 3 | 1 | 0.5 | 4 | 2.6 |
| SMA-JFD157 | 22.2max | 3 | 2 | 0.5 | 4 | 2.2 |
| SMA-JFD189 | 19.9max | 4 | 1.5 | 0.5*0.2 | 4 | 2.2 |
2.Female Pcb Panel Solder SMA RF Connectors
3.Male Right Angle SMA Connectors
4.Bulkhead Mount Female SMA RF Connectors
5.Female Flange Mount SMA RF Connectors
About us:
√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500
experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 20 yearS
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Monthly average turnover is 10 million
√ Custom-made (ODM) orders welcome here
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ We are committed to providing high-quality products to customers
√ Have long and Rich cooperation experience with national project components supply.
NOTE:
We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
Product Tags:
|
|
SMA 2 Holes Flange Mount 90 Degree Female Coaxial Connector Images
|
